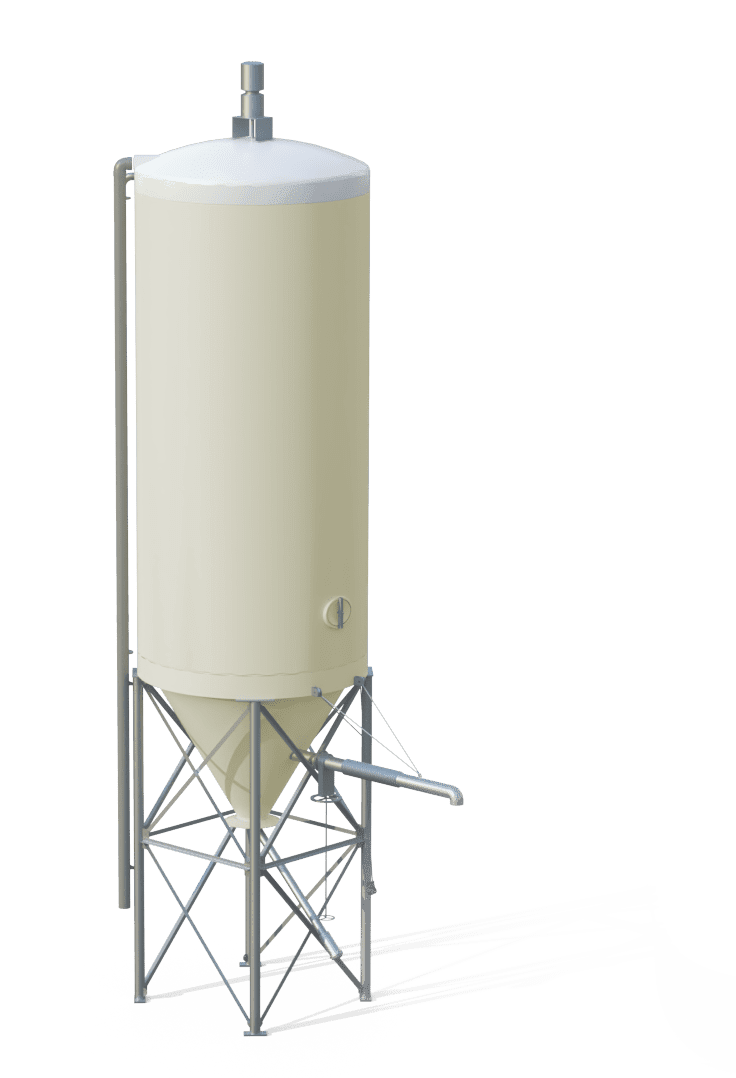

Our dual-purpose silo offers livestock farmers maximum versatility. The silos can be used for both dry and liquid products and are therefore particularly useful for businesses that have to deal with fluctuating availability of by-products from the food industry.

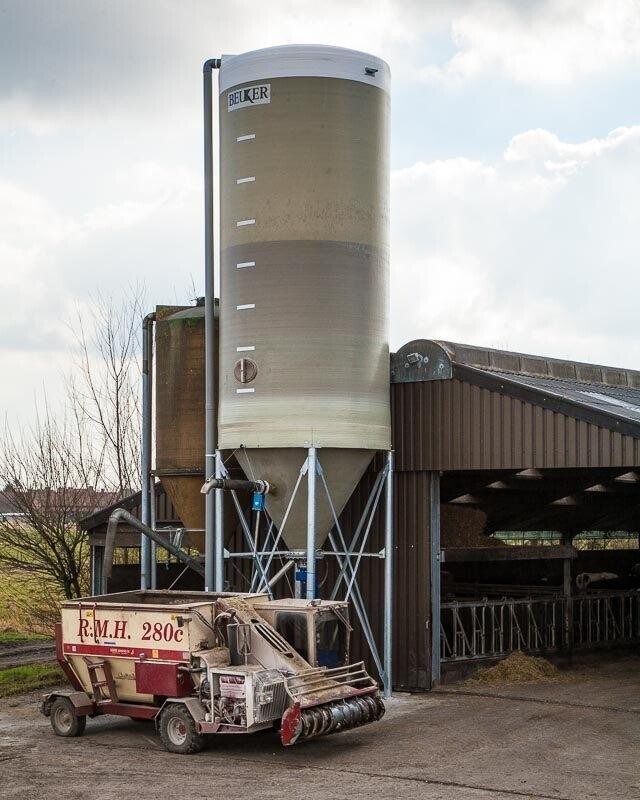

To facilitate filling the feed mixer, the silo is placed on a raised galvanised steel base  . The dry feed can then be easily tipped in, and the liquid product can be drained without any problems via the liftable spout . The dual-purpose silo therefore reduces the investment risk and also offers extra flexibility.

Dubbeldoelsilo

Standard version

  • Diameter 2800 and 3000 mm
  • Capacity 40/50/60 m³
  • Bulk density 1100 kg/m³
  • Maximum temperature 50°C
  • Filling point, stainless steel valve with 4” VK100 tanker coupling with cap
  • Stainless steel agitator with 4.0 kW gear motor. Shaft made from thick-walled box section 80 x 80 x 4 mm with universal joint. Bearing block mounted on a 6 mm stainless steel plate at the outlet. 2 agitator blades, Ø 900 mm and Ø 1400 mm respectively
  • GRP oval manhole in the cylinder wall
  • Drain pipe for mixer wagon, Ø 160 mm, adjustable from the ground using a hand winch. The drain is fitted with a coated steel gate valve with a stainless steel disc, operable from the ground by means of a handwheel. Discharge height 3500 mm
  • PVC vent pipe Ø 160 to 1600 mm from ground level
  • Hot-dip galvanised steel base frame on short legs, outlet height approx. 2500 mm
  • Semi-transparent, white roof RAL 9010
  • Plastic control box with soft starter for agitator available at extra cost

Options

  • Conversion of the silo for the storage of dry feed

Would you like more information?

M.I.P. is the market leader in storage solutions in the agricultural sector. Would you like more information? Please feel free to request a quote.

You can find all the details in our brochure
